Cryogenic Tanks

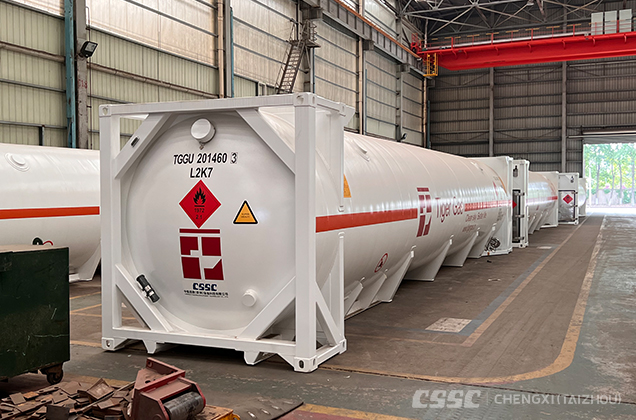

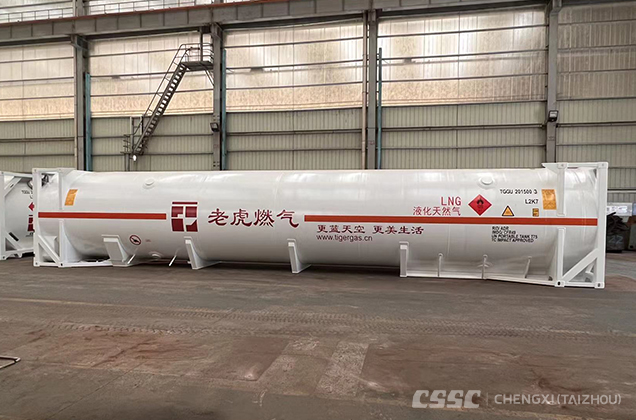

40ft/45ft ISO LNG Tank Container - T75

40ft or 45ft ISO LNG Tank Container classified as T75 is a larger version of cryogenic tank containers designed for the transportation and storage of liquefied natural gas (LNG) and other cryogenic liquids. These containers are engineered to maintain extremely low temperatures and safe pressures for LNG transport over longer distances and in larger volumes.

Main Specifications

MODELTYPE: UN Portable Tank T75

SPECIFICATION: 40FT/ 45FT

GROSSCAPACITY: 46.00M³/ 52.30M³

CLASSIFICATION SOCIETY: BV

WORKING PRESSURE: 8Bar/ 6.5 Bar

DESIGNTEMPERATURE: -196, +50℃

MATERIAL OF MEDIUM: LNG/LC2H4

Material: Inner vessel SA 240M 304 / Out vessel Q345R

Dimension:12192*2438*2591 mm/ 13716*2438*2591 mm
